VPN Customer Gateway

VPN Customer Gateway​

A VPN Customer Gateway is an essential component for establishing a secure VPN connection between your on-premises network and a cloud provider. In Cuemby Cloud, this allows secure communication between your private network and virtual private cloud (VPC). Follow this step-by-step guide to configure and add a VPN Customer Gateway in Cuemby Cloud.

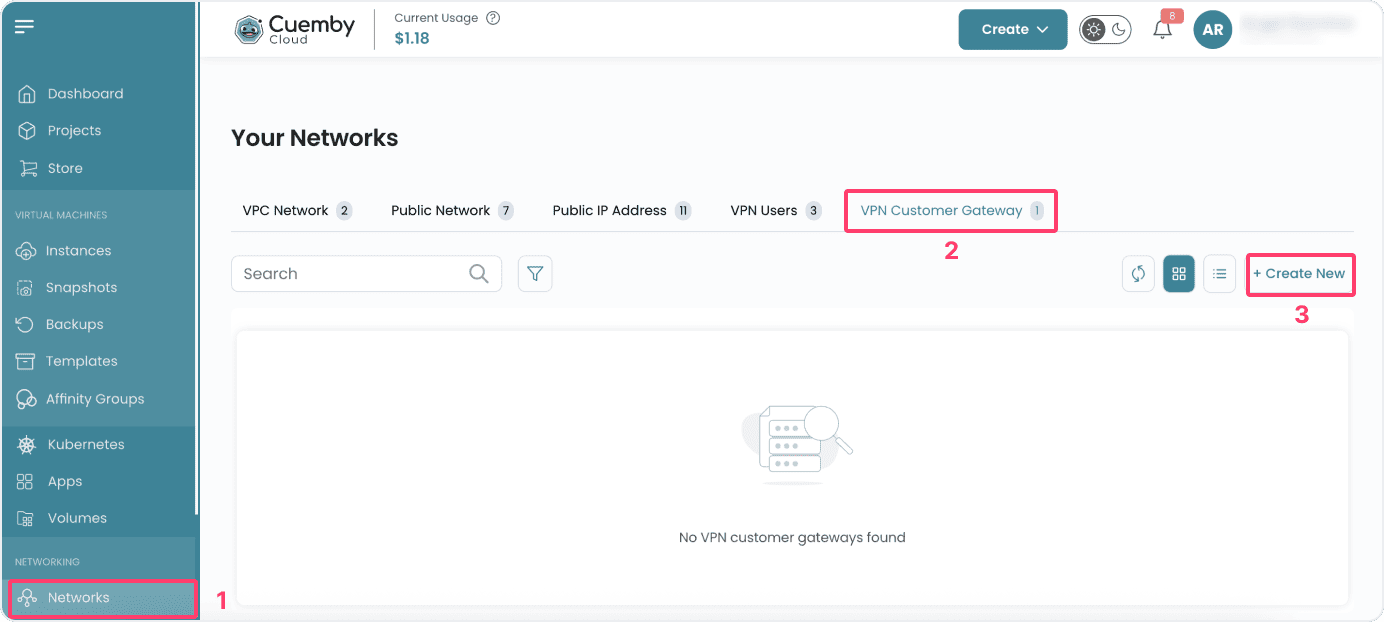

  • From the left-hand menu, click on the Networks tab.
  • You will be redirected to the Networks page. Go to the VPN Customer Gateway tab.
  • To create a VPC user, click on the Create New button located inside the modal of the Networks page. This will open the VPC Customer Gateway creation modal.

vpn-customer-gateway

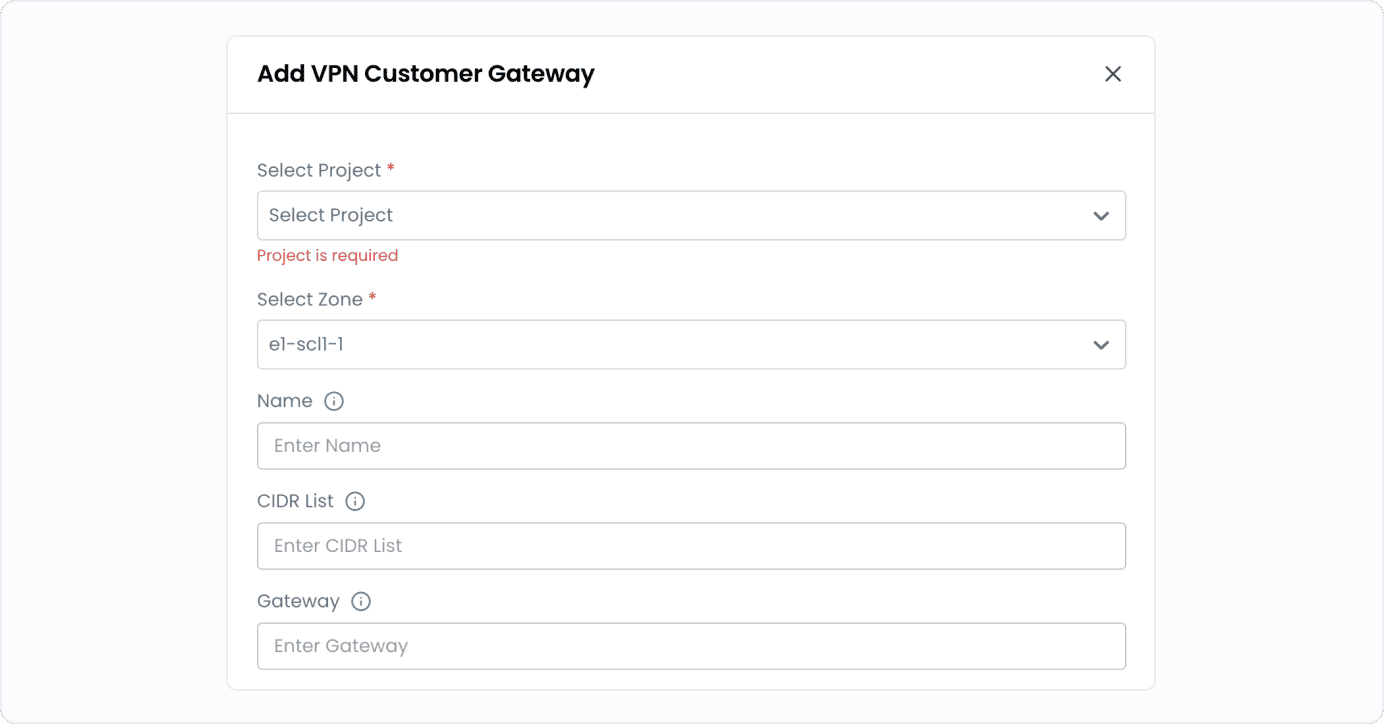

  • Select Project: Choose the project where the VPN Customer Gateway will be deployed.
  • Select Zone: Pick the appropriate zone or region for your VPN gateway.
  • Name: Provide a unique, identifiable name for the VPN Customer Gateway.
  • CIDR List: Define the IP range (in CIDR format) allowed for communication between your network and the cloud.
  • Gateway: Provide the public IP address of your on-premises VPN device (router or firewall).

vpn-customer-gateway2

Gateway Configurations​

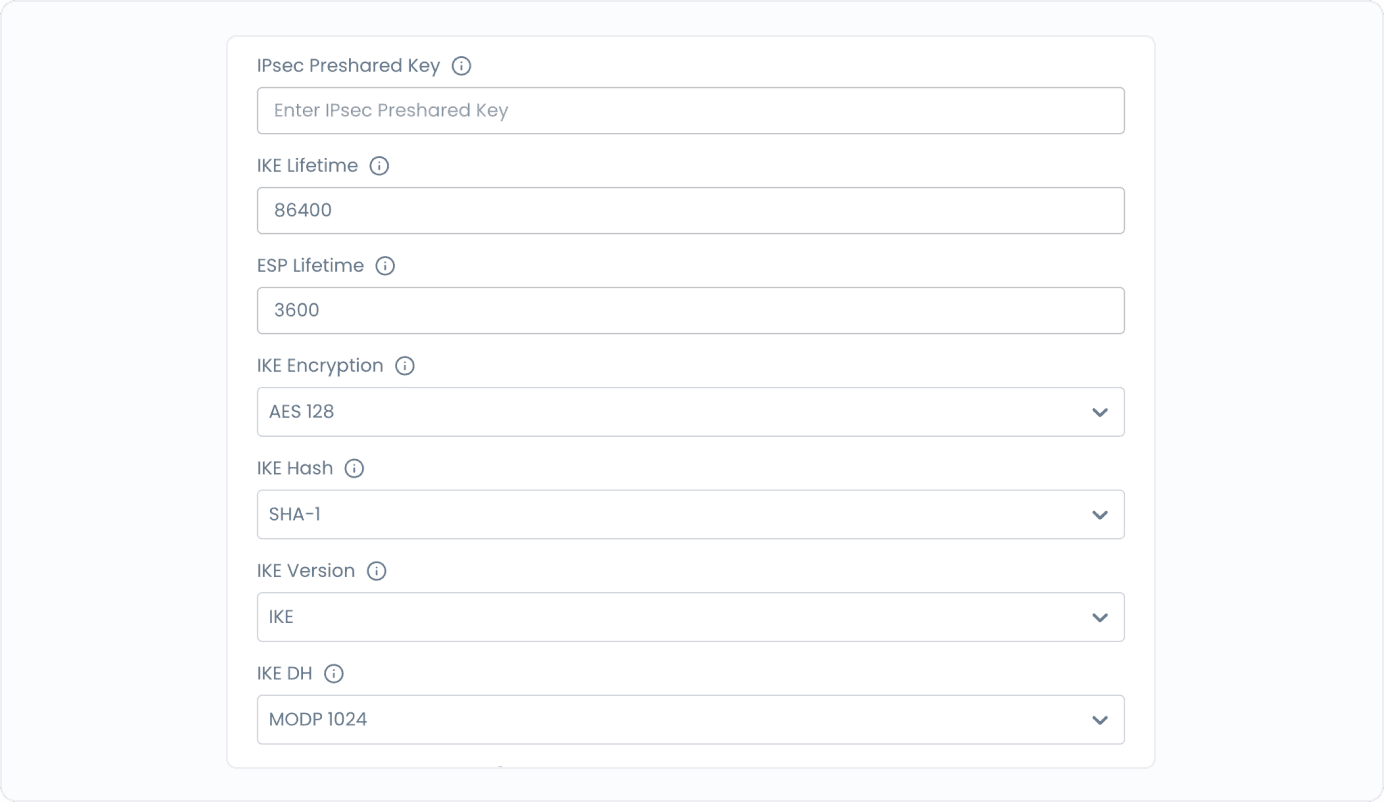

To establish a secure connection, configure the following IPsec and IKE (Internet Key Exchange) parameters.

  • IPsec Pre-Shared Key: A shared secret used for authentication between VPN devices.
  • IKE Lifetime: Define the duration (in seconds) for which an IKE session remains active (e.g., 28800 seconds).
  • ESP Lifetime: Set the lifetime of the Encapsulating Security Payload (ESP) session.
  • IKE Encryption Algorithm: Select the encryption method for the IKE phase (e.g., AES-256, AES-128).
  • IKE Hash Algorithm: Choose the hashing algorithm for data integrity (e.g., SHA-256, SHA-512).
  • IKE Version: Specify IKEv1 or IKEv2 (IKEv2 is recommended for better security).
  • IKE DH (Diffie-Hellman Group): Select a DH group for key exchange security (e.g., Group 14, Group 19).
  • Perfect Forward Secrecy (PFS): Enable PFS to ensure each key exchange is independent.
  • ESP Encryption Algorithm: Choose the encryption method for ESP (e.g., AES-256).
  • ESP Hash Algorithm: Select the hashing method for ESP integrity verification (e.g., SHA-256)

vpn-customer-gateway3

Enable Advanced Features (Optional)​

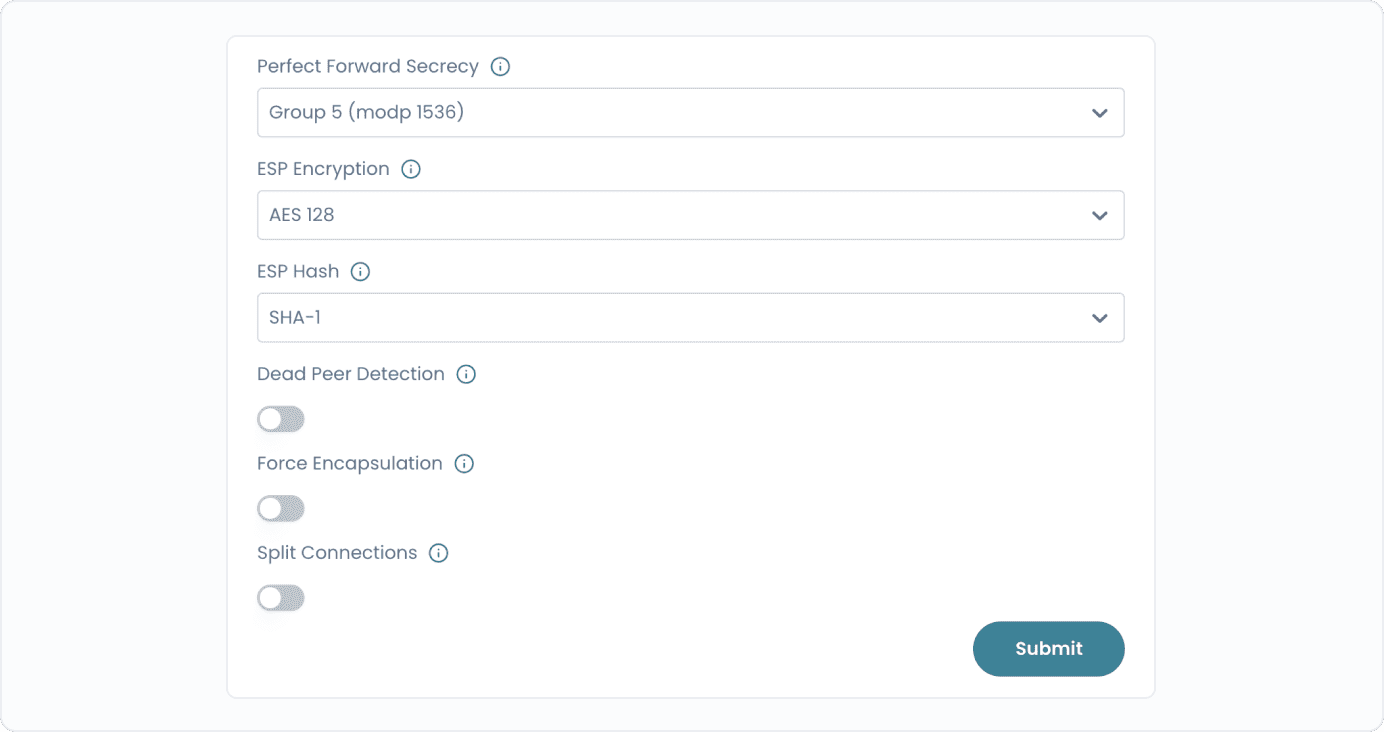

Cuemby Cloud provides additional security and performance features that can be enabled by toggling advance options.

  • Dead Peer Detection (DPD): Monitors and automatically restores lost VPN connections.
  • Force Encapsulation: Ensures VPN traffic passes through firewalls and NAT devices.
  • Split Connections: Enables multiple VPN tunnels for better redundancy and performance.

vpn-customer-gateway4

  • Click on Submit and your VPN Customer Gateway will be created.

Conclusion​

The VPN Customer Gateway enables secure connectivity between your on-premises infrastructure and the cloud VPC. With configurable encryption, authentication, and advanced features, it ensures reliable, private, and high-performance communication across hybrid environments.
